Beam Clamp – LMBC

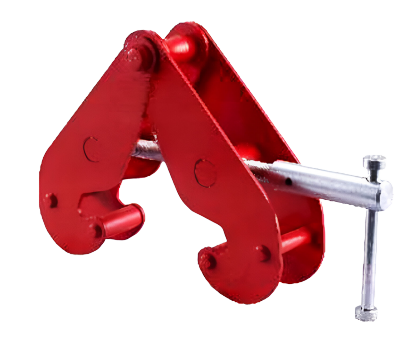

Beam Clamp - LMBC
- Flexible application due to wide adjustment range.
- Provides quick and versatile rigging for hoisting equipment, pulley blocks or loads.
- The central threaded spindle allows easy attachment and a safe secure grip.
- Spindle can be secured against loosening.
- Conforms to standard EN 13115.
Product Gallery
Technical Features Specification
- Flexible application due to wide adjustment range.
- Provides quick and versatile rigging for hoisting equipment, pulley blocks or loads.
- The central threaded spindle allows easy attachment and a safe secure grip.
- Spindle can be secured against loosening.
- Conforms to standard EN 13115.
| Model No | Capacity (kg) | Adjustable Beam Width (mm) | A | B | B | C | D | E | F | F | G | H | Weight (kg) |
| Max. (mm) | Min. (mm) | Max. (mm) | (mm) | (mm) | (mm) | Min. (mm) | Max. (mm) | (mm) | (mm) | ||||
| LM-BC 01 | 1000 | 75-230 | 278 | 180 | 370 | 62 | 5 | 230 | 100 | 160 | 30 | 25 | 4 |
| LM-BC 02 | 2000 | 75-230 | 278 | 180 | 370 | 67 | 6 | 230 | 100 | 160 | 35 | 28 | 4.4 |
| LM-BC 03 | 3000 | 80-320 | 356 | 230 | 480 | 100 | 8 | 260 | 125 | 210 | 45 | 32 | 8.6 |
| LM-BC 05 | 5000 | 80-320 | 356 | 230 | 480 | 110 | 10 | 260 | 125 | 210 | 50 | 38 | 10.7 |
| LM-BC 10 | 10000 | 80-320 | 356 | 255 | 490 | 115 | 12 | 270 | 170 | 240 | 65 | 43 | 14.5 |
