Bolt Type Anchor Shackle
Bolt Type Anchor Shackle
Anchor Shackles Bolt Type, Forged Alloy Steel, High Tensile Strength.
- Finished: Hot dip gray galvanized.
- Working load limit: Permanently marked on every shackle.
- Material: Forged high-tensile steel, quenched and tempered, Grade-6.
- Shackle Size: Capacities 1/3 to 150 metric tons.
Meets the performance requirements of Federal Specification RR-C-271D, Type IVA, Grade A, Class 2, and EN 13889 except for those provisions required of the contractor.
Product Gallery
Technical Features Specification
Anchor Shackles Bolt Type, Forged Alloy Steel, High Tensile Strength.
- Finished: Hot dip gray galvanized.
- Working load limit: Permanently marked on every shackle.
- Material: Forged high-tensile steel, quenched and tempered, Grade-6.
- Shackle Size: Capacities 1/3 to 150 metric tons.
Meets the performance requirements of Federal Specification RR-C-271D, Type IVA, Grade A, Class 2, and EN 13889 except for those provisions required of the contractor.

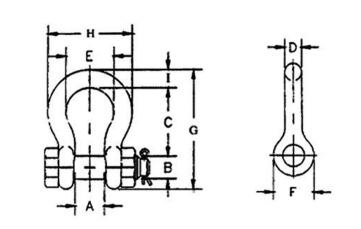

| Nominal Size (in.) | Working Load Limit (tons) | Dimensions (mm) | Weight Each (kg) | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 37.2 | 24.9 | 4.85 | 0.03 |
| 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 46.7 | 32.5 | 6.35 | 0.05 |
| 5/16 | 3/4 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 53 | 37.3 | 7.85 | 0.1 |
| 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 63 | 45.2 | 9.65 | 0.15 |
| 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 74 | 51.5 | 11.2 | 0.22 |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 83.5 | 58.5 | 12.7 | 0.36 |
| 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 106 | 74.5 | 17.5 | 0.76 |
| 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 126 | 89 | 20.6 | 1.23 |
| 7/8 | 6-1/2 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 148 | 102 | 24.6 | 1.79 |
| 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 167 | 119 | 26.9 | 2.57 |
| 1-1/8 | 9-1/2 | 46 | 31.8 | 108 | 28.7 | 74 | 68.5 | 190 | 131 | 31.8 | 3.75 |
| 1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76 | 210 | 146 | 35.1 | 5.31 |
| 1-3/8 | 13-1/2 | 57 | 38.1 | 133 | 35.1 | 92 | 84 | 233 | 162 | 38.1 | 7.18 |
| 1-1/2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92 | 254 | 175 | 41.1 | 9.43 |
| 1-3/4 | 25 | 73 | 51 | 178 | 44.5 | 127 | 106 | 313 | 225 | 57 | 15.4 |
| 2 | 35 | 82.5 | 57 | 197 | 51 | 146 | 122 | 348 | 253 | 61 | 23.7 |
| 2-1/2 | 55 | 105 | 70 | 267 | 66.5 | 184 | 145 | 453 | 327 | 79.5 | 44.6 |
| 3 | 85 | 127 | 82.5 | 330 | 76 | 200 | 165 | 546 | 365 | 92 | 70 |
| 3-1/2 | 120 | 133 | 95.5 | 372 | 92 | 229 | 203 | 626 | 419 | 105 | 120 |
| 4 | 150 | 140 | 108 | 368 | 104 | 254 | 229 | 653 | 468 | 116 | 153 |
