Clevis Shortening Clutch – LMSC
Clevis Shortening Clutch - LMSC
- Forged super alloy steel – quenched and tempered.
- Fatigue tested at 1.5 times the working load limit (WLL) for 20,000 cycles
- Suitable for G80 chain EN 818-2.
- Individually proof-tested at 2.5 times the working load limit (WLL).
- Minimum breaking strength is 4 times the WLL.
- Meets standard EN 1677-2.
- Inspected and tested.
- Surface finish: Powder Coating.
Product Gallery
Technical Features Specification
- Forged super alloy steel – quenched and tempered.
- Fatigue tested at 1.5 times the working load limit (WLL) for 20,000 cycles
- Suitable for G80 chain EN 818-2.
- Individually proof-tested at 2.5 times the working load limit (WLL).
- Minimum breaking strength is 4 times the WLL.
- Meets standard EN 1677-2.
- Inspected and tested.
- Surface finish: Powder Coating.

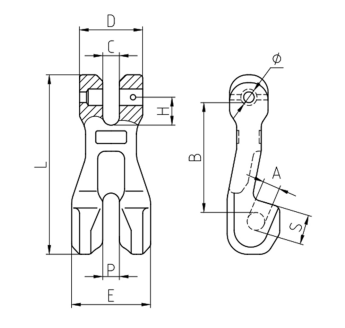

| Model No | Size (In) | WLL (Tons) | MBL (Tons) | Dimensions (mm) | N.W. (kg/pc) | |||||||||
| A ± 0.3 | B ± 2 | C ± 0.5 | D ± 1 | E ± 2 | H ± 1 | L ± 2 | Φ ± 0.5 | P ± 0.5 | S ± 0.5 | |||||
| LM-SC 6-8 | 6-8 | 1.12 | 4.48 | 8 | 44 | 7.5 | 30 | 32.8 | 11.8 | 74 | 7.8 | 7.5 | 12 | 0.18 |
| LM-SC 7/8-8 | 7/8-8 | 2 | 8 | 10.5 | 61.7 | 9.5 | 36 | 45 | 15.7 | 101 | 9.5 | 9.5 | 17 | 0.45 |
| LM-SC 10-8 | 10-8 | 3.15 | 12.6 | 12.4 | 92 | 13 | 48 | 55 | 20 | 138 | 13.2 | 13 | 28 | 0.93 |
| LM-SC 13-8 | 13-8 | 5.3 | 21.2 | 16 | 115 | 17 | 59 | 75 | 24.5 | 177 | 16.5 | 16.5 | 34.5 | 1.88 |
| LM-SC 16-8 | 16-8 | 8 | 32 | 19.5 | 143 | 21 | 73 | 93 | 30.5 | 220 | 20 | 20 | 43 | 3.5 |
| LM-SC 18/20-8 | 18/20-8 | 12.5 | 50 | 23 | 152 | 24 | 81 | 102 | 36 | 238 | 24.3 | 23.5 | 46 | 4.43 |
| LM-SC 22-8 | 22-8 | 15 | 60 | 26 | 195 | 26 | 89 | 118 | 42 | 295 | 28.1 | 25.5 | 57.5 | 8.05 |
