Electric Chain Hoist – LMECH
Electric Chain Hoist - LMECH
Large power motor, high speed, IP54.
The shell is light and strong, with high heat dissipation rate and fully sealed design, which is suitable for use in environments with poor working conditions.
With reverse phase protection device, when the power supply wiring is wrong, the control circuit cannot work.
There is a limit switch device for hanging heavy objects up and down, which stops the motor automatically to prevent the chain from exceeding and ensure safety.
Product Gallery
Technical Features Specification
- Large power motor, high speed, IP54.
- The shell is light and strong, with high heat dissipation rate and fully sealed design, which is suitable for use in environments with poor working conditions.
- With reverse phase protection device, when the power supply wiring is wrong, the control circuit cannot work.
- There is a limit switch device for hanging heavy objects up and down, which stops the motor automatically to prevent the chain from exceeding and ensure safety.
- Adopt disc electromagnetic brake, braking torque is large, fast, reliable, and low noise.
- The 80-grade heat-treated alloy steel chain with DAT A marking is used to make the chain stronger and more wear-resistant.
- Meets standard BS EN 14492-2:2019, Insulation Class F.
3-Phase, 380V, 50HZ, Single Speed, with Wireless/Wired Remote Control
| Model No | Capacity | Standard Lift | Test Load | Motor Power (kw) | No. of Chain | Dia. of Chain | Lifting Speed (m/min) | Net Weight | Extra weight per meter of extra lift (kg) |
| (Tons) | (m) | (Tons) | Single | (mm) | Single | (kg) | |||
| LM-ECH 0.5 | 0.5 | 6 | 0.625 | 1.1 | 1 | 6.3 | 7.2 | 38 | 0.81 |
| LM-ECH 1 | 1 | 6 | 1.25 | 1.5 | 1 | 7.1 | 6.8 | 58 | 1.1 |
| LM-ECH 2 | 2 | 6 | 2.5 | 3 | 1 | 10 | 6.8 | 111 | 2.3 |
| LM-ECH 3 | 3 | 6 | 3.75 | 3 | 1 | 11.2 | 5.6 | 116 | 2.8 |
| LM-ECH 5 | 5 | 6 | 6.25 | 3 | 2 | 11.2 | 2.8 | 145 | 5.6 |
| LM-ECH 10 | 10 | 6 | 12.5 | 3.0×2 | 4 | 11.2 | 2.8 | 338 | 11.2 |

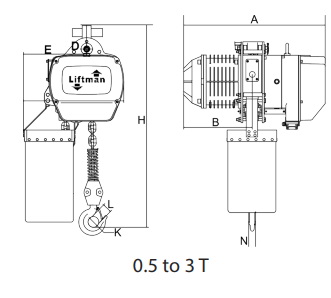

Main dimensions
| Model No | Capacity (Tons) | Dimensions (mm) | |||||||
| H | A | B | D | E | K | L | N | ||
| LM-ECH 0.5 | 0.5 | 630 | 460 | 230 | 240 | 160 | Φ32 | 25 | 17 |
| LM-ECH 1 | 1 | 650 | 520 | 260 | 310 | 205 | Φ40 | 31 | 24 |
| LM-ECH 2 | 2 | 770 | 620 | 300 | 440 | 265 | Φ49 | 35 | 30 |
| LM-ECH 3 | 3 | 840 | 620 | 300 | 440 | 265 | Φ59 | 42 | 35 |
| LM-ECH 5 | 5 | 1015 | 620 | 300 | 440 | 325 | Φ60 | 45 | 43 |
| LM-ECH 10 | 10 | 1200 | 630 | 315 | 940 | Φ83 | 68 | 55 | |
