Electric Trolley – LMET
Electric Trolley - LMET
The motor and reducer housing are made of high-quality die-cast aluminum alloy, which is light and strong, with good heat dissipation performance and fully sealed design, suitable for use under harsh working conditions.
Adopt disc electromagnetic brake, braking torques is large, fast, reliable and low noise.
Product Gallery
Technical Features Specification
- The motor and reducer housing are made of high-quality die-cast aluminum alloy, which is light and strong, with good heat dissipation performance and fully sealed design, suitable for use under harsh working conditions.
- Adopt disc electromagnetic brake, braking torques is large, fast, reliable and low noise.
- With reverse phase protection device, when the three-phase power supply is connected incorrectly, the electrical appliance cannot be operated to ensure safe use.
- When the hook reaches the upper limit position and the lower limit position, the limit switch device stops the motor automatically to ensure safe and reliable operation of the whole machine.
- The magnetic brake can achieve instant braking when the power is cut off to ensure safe and reliable use.
3-Phase, 380V, 50HZ, Single Speed

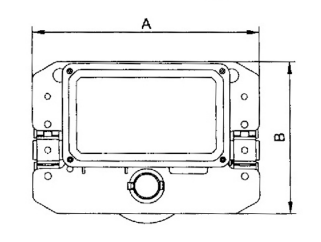

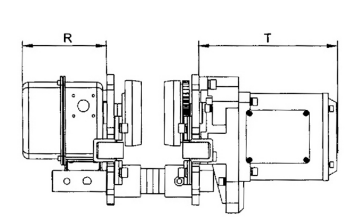

| Model No | Capacity (Tons) | A (mm) | B (mm) | R (mm) | T (mm) | Speed (m/min) 50Hz | Motor (kW) | Minimum radius of turn | Net weight (kg) | I-beam size (mm) |
| LM- ET 0.5 | 0.5 | 315 | 212 | 142 | 231 | 12 | 0.4 | 0.8 | 18 | 70-130 |
| LM-ET 1 | 1 | 315 | 212 | 142 | 231 | 10 | 0.4 | 0.8 | 33 | 80-160 |
| LM-ET 2 | 2 | 325 | 220 | 142 | 231 | 10 | 0.4 | 0.8 | 41 | 82-178 |
| LM-ET 3 | 3 | 340 | 250 | 142 | 231 | 10 | 0.75 | 1 | 55 | 100-180 |
| LM ET 5 | 5 | 400 | 291 | 142 | 231 | 10 | 0.75 | 1.8 | 73 | 110-180 |
| LM ET 10 | 10 | 500 | 370 | 142 | 231 | 10 | 0.75 | 2.5 | 124 | 150-220 |
