G43 & G70 Clevis Grab Hook – LMCGH
G43 & G70 Clevis Grab Hook - LMCGH
- G43 made from carbon steel & G70 made from heat treated carbon steel.
- Fatigue-tested at 1.5 times the WLL for 20,000 cycles.
- Suitable for use with G43 & G70 steel chain.
- Complies with ASME standard.
- Individually proof tested at 2.5 times working load limit (WLL).
- Safety factor- G43- 5:1 & G70- 4:1
Product Gallery
Technical Features Specification
- G43 made from carbon steel & G70 made from heat treated carbon steel.
- Fatigue-tested at 1.5 times the WLL for 20,000 cycles.
- Suitable for use with G43 & G70 steel chain.
- Complies with ASME standard.
- Individually proof tested at 2.5 times working load limit (WLL).
- Safety factor- G43- 5:1 & G70- 4:1

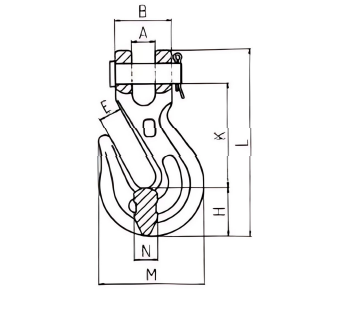

| Model No | Weight (kg) | WLL (Tons) G43 | WLL (Tons) G70 | A ±1 | B ±1.5 | E ±0.5 | H ±1 | K ±1 | L ±1 | M ±1 | N ±1 |
| LM–CGH 6 | 0.16 | 1.18 | 1.43 | 8.5 | 25 | 9.5 | 19 | 45 | 78.5 | 47.4 | 12.5 |
| LM–CGH 8 | 0.28 | 1.78 | 2.13 | 11.5 | 29 | 11.5 | 25 | 54 | 96.5 | 54.5 | 16 |
| LM–CGH 10 | 0.45 | 2.45 | 3 | 12.5 | 35 | 12.2 | 31 | 64.5 | 114.5 | 67.5 | 18 |
| LM–CGH 11 | 0.68 | 3.27 | 3.97 | 17 | 42 | 14.5 | 33.5 | 70 | 126 | 76.8 | 19 |
| LM–CGH 13 | 1.01 | 4.17 | 5.13 | 18.5 | 47 | 17 | 39.5 | 85 | 148.5 | 91 | 20.5 |
| LM–CGH 16 | 2.0 | 5.9 | 7.17 | 23 | 56 | 20 | 45 | 102.5 | 177 | 109.5 | 22 |
| LM–CGH 19 | 2.95 | 9.16 | 11.2 | 24 | 66.5 | 24 | 54 | 118 | 207.5 | 132.6 | 33.3 |
