G80 Clevis Shortening Grab Hook – LMSGH
G80 Clevis Shortening Grab Hook - LMSGH
- Manufactured from forged or welded super alloy steel.
- Fatigue-tested at 1.5 times the WLL for 20,000 cycles.
- Compatible with Grade-80 alloy steel chain.
- Complies with EN 1677-1 standard.
- Individually proof tested at 2.5 times working load limit (WLL).
- Safety factor- 4:1
Product Gallery
Technical Features Specification
- Manufactured from forged or welded super alloy steel.
- Fatigue-tested at 1.5 times the WLL for 20,000 cycles.
- Compatible with Grade-80 alloy steel chain.
- Complies with EN 1677-1 standard.
- Individually proof tested at 2.5 times working load limit (WLL).
- Safety factor- 4:1

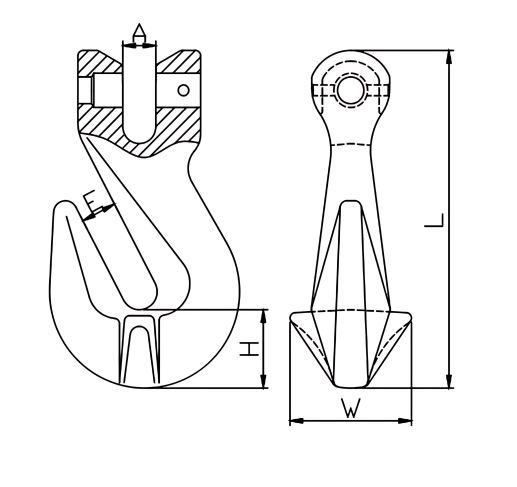

| Model No | WEIGHT (KG) | WLL (Tons) | MBL (Tons) | E ±1 | A ±0.5 | H ±1 | W ±1 | L ±2 |
| LM-SGH 06 | 0.25 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 |
| LM-SGH 7/8 | 0.32 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 |
| LM-SGH 10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
| LM-SGH 13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 |
| LM-SGH 16 | 2.8 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 |
| LM-SGH 20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
| LM-SGH 22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
| LM-SGH 26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 |
