G80 Eye Grab Hook – LMEGH
G80 Eye Grab Hook - LMEGH
- Manufactured from forged or welded super alloy steel.
- Fatigue-tested at 1.5 times the WLL for 20,000 cycles.
- Compatible with Grade-80 alloy steel chain.
- Complies with ASME standard.
- Individually proof tested at 2.5 times working load limit (WLL).
- Safety factor- 4:1
Product Gallery
Technical Features Specification
- Manufactured from forged or welded super alloy steel.
- Fatigue-tested at 1.5 times the WLL for 20,000 cycles.
- Compatible with Grade-80 alloy steel chain.
- Complies with ASME standard.
- Individually proof tested at 2.5 times working load limit (WLL).
- Safety factor- 4:1

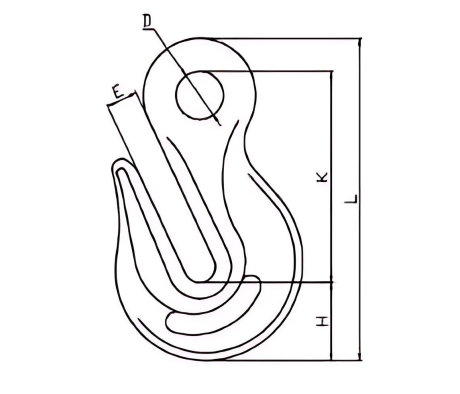

| Model No | WEIGHT (KG) | WLL (Tons) | MBL (Tons) | E ±0.5 | D ±1 | H ±1 | K ±2 | L ±2 |
| LM-EGH 1/4 | 0.13 | 1.2 | 4.8 | 8 | 13 | 19 | 54 | 81 |
| LM-EGH 9/32 | 0.27 | 2 | 8 | 9.5 | 15 | 23 | 64 | 98 |
| LM-EGH 3/8 | 0.55 | 3.2 | 12.8 | 12.5 | 20 | 30 | 82 | 125 |
| LM-EGH 1/2 | 1.3 | 5.4 | 21.6 | 17 | 25 | 42 | 106 | 165 |
| LM-EGH 5/8 | 2.48 | 8.2 | 32.8 | 20 | 30 | 49 | 127 | 196.6 |
| LM-EGH 3/4 | 3.8 | 12.8 | 51.2 | 23 | 34.5 | 56 | 152 | 231.6 |
| LM-EGH 7/8 | 5.8 | 15.5 | 62 | 28.6 | 40.5 | 65.6 | 175 | 267.6 |
