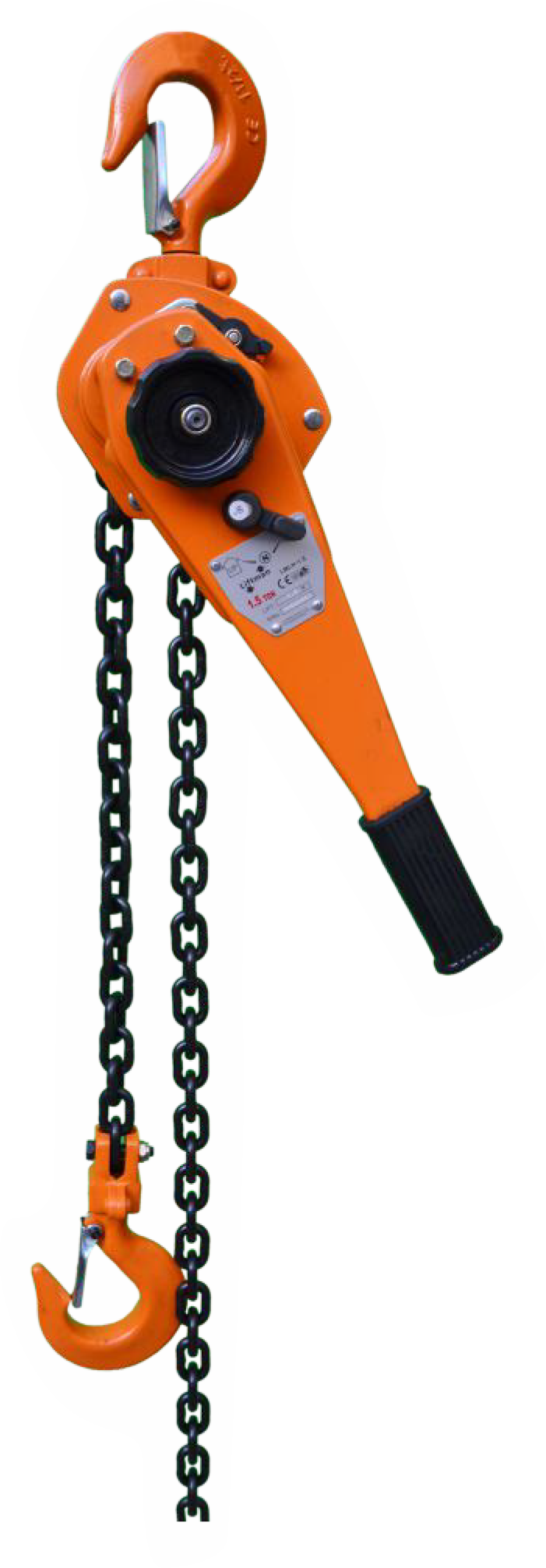

Lever Hoist – LMLH
Lever Hoist - LMLH
- Load range: 0.25 to 9 Tons.
- LMLH manual lever hoist is a compact unit.
- Suitable for industrial use, as well as for lifting, pulling and sliding.
- These units are lightweight and easy to handle.
- Standard chain lengths of 1.5 meters and non-standard chain lengths available on request.
- LMLH can be used in any position. Simply switch the lever to make the hoist easier to handle.
- LMLH comes with asbestos-free friction disc.
Product Gallery
Technical Features Specification
- These units are lightweight and easy to handle.
- Standard chain lengths of 1.5 meters and non-standard chain lengths available on request.
- LMLH can be used in any position. Simply switch the lever to make the hoist easier to handle.
- LMLH comes with asbestos-free friction disc.
- LMLH comes with an automatic double pawl braking system.
- Reinforced casing effectively protects internal mechanisms.
- High resistance industrial powder coating meets ROHS requirement.
- Extremely safe, lightweight and low-maintenance.
- High-strength GR 80 alloy load chain with black finish.
- 1500 cycle life test meets EN 13157, ANSI B30.16 standards.
- Safety factor – 4:1
- Proof Load: 1.5 WLL.
| Model No | Capacity (Tons) | Standard Lift(m) | Running Test Load (T) | Effort required to lift max load (N) | No.of falls of load chain | Load chain diameter (mm) | Dimensions (mm) | Net Weight | |||||
| A | B | C | D | L | H | ||||||||

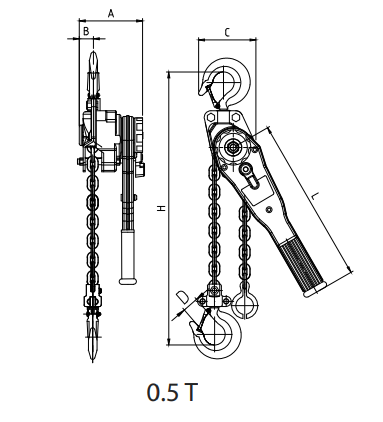

| LM-LH 0.5 | 0.5 | 1.5 | 0.75 | 330 | 1 | 5×15 | 105 | 24 | 85 | 29 | 265 | 270 | 3.5 |

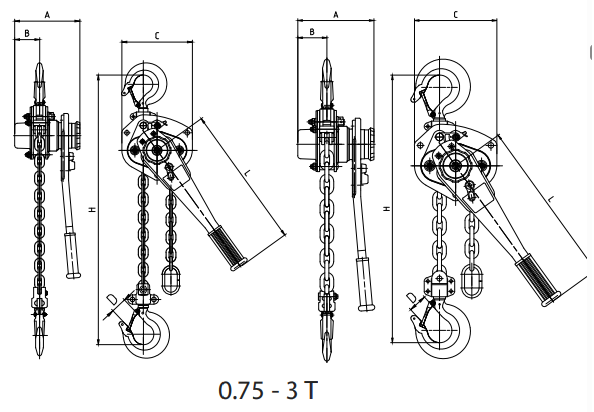

| LM-LH 0.75 | 0.75 | 1.5 | 1.125 | 230 | 1 | 6×18 | 150 | 55 | 128 | 32 | 254 | 303 | 6.4 |
| LM-LH 1 | 1 | 1.5 | 1.5 | 250 | 1 | 6×18 | 150 | 55 | 128 | 32 | 254 | 303 | 6.4 |
| LM-LH 1.5 | 1.5 | 1.5 | 2.25 | 295 | 1 | 7.1×21 | 165 | 64 | 149 | 36 | 366 | 365 | 11.5 |
| LM-LH 3 | 3 | 1.5 | 4.5 | 414 | 1 | 10×30 | 195 | 85 | 182 | 41 | 366 | 485 | 17.6 |

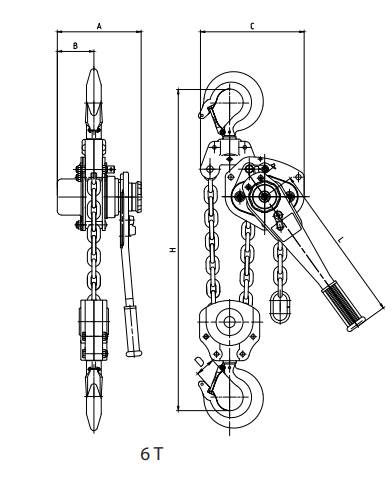

| LM-LH 6 | 6 | 1.5 | 9 | 430 | 2 | 10×30 | 195 | 85 | 240 | 46 | 366 | 600 | 28.7 |

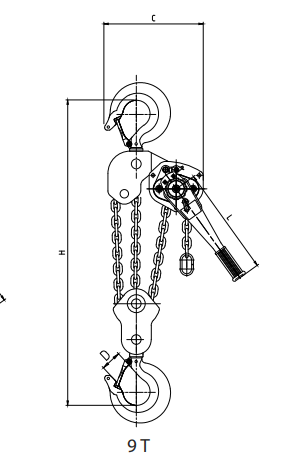

| LM-LH 9 | 9 | 1.5 | 13.5 | 430 | 3 | 10×30 | 195 | 85 | 335 | 59 | 366 | 700 | 49 |
