Master Link – LMML
Master Link - LMML
- Forged or welded super alloy steel.
- Suitable for use with Gr.80 chain.
- Meets standard EN 1677.
- Used for single- or double-leg wire rope/chain slings.
- Individually proof tested at 2.5 times of the working load limit.
- Safety factor – 4:1
Product Category
Technical Features Specification
- Forged or welded super alloy steel.
- Suitable for use with Gr.80 chain.
- Meets standard EN 1677.
- Used for single- or double-leg wire rope/chain slings.
- Individually proof tested at 2.5 times of the working load limit.
- Safety factor – 4:1

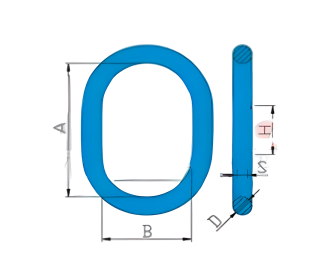

| Model No | WEIGHT (Kg) | WLL (Tons) | Dimensions (mm) | ||||
| A | B | D | S | H | |||
| LM-ML 11B4 | 0.18 | 2.1 | 83±4 | 40±3 | 11±0.5 | 6±0.5 | 40 |
| LM-ML 13B5 | 0.3 | 2.6 | 95±4 | 51±4 | 13±0.5 | 7±0.5 | 50 |
| LM-ML 13B6 | 0.35 | 2.4 | 115±5 | 60±4 | 13±0.5 | 7±0.5 | 50 |
| LM-ML 16B6 | 0.6 | 3.8 | 120±5 | 70±4 | 16±0.5 | 9±0.5 | 70 |
| LM-ML 16B7 | 0.86 | 2.8 | 190±5 | 100±4 | 16±0.5 | 9±0.5 | 70 |
| LM-ML 20B6 | 1.1 | 6.7 | 150±5 | 80±4 | 20±0.5 | 11±0.5 | 50 |
| LM-ML 20B6 B | 1.2 | 6.4 | 160±5 | 90±4 | 20±1 | 11±0.5 | 50 |
| LM-ML 20B7 | 1.25 | 5.8 | 170±5 | 90±4 | 20±1 | 11±0.5 | 50 |
| LM-ML -20B7 B | 1.25 | 5.8 | 160±5 | 90±4 | 20±1 | 11±0.5 | 50 |
| LM-ML 22B6 | 1.53 | 7.6 | 170±5 | 90±4 | 22±1 | 12±0.5 | 70 |
| LM-ML -22B6 B | 1.53 | 7.6 | 160±5 | 90±4 | 22±1 | 12±0.5 | 70 |
| LM-ML 22B7 | 1.83 | 6.4 | 210±6 | 110±5 | 22±1 | 12±0.5 | 70 |
| LM-ML 22B7 B | 1.83 | 6.4 | 210±6 | 110±5 | 22±1 | 12±0.5 | 70 |
| LM-ML 22B8 | 2.32 | 5.8 | 210±6 | 140±5 | 22±1 | 12±0.5 | 70 |
| LM-ML 25B6 | 2.21 | 10 | 190±5 | 100±5 | 25±1 | 13±0.5 | 80 |
| LM-ML 25B6 B | 2.21 | 10.7 | 190±5 | 102±5 | 25±1 | 13±0.5 | 80 |
| LM-ML 25B7 | 3 | 8 | 270±6 | 140±5 | 25±1 | 13±0.5 | 80 |
| LM-ML 28B6 | 3.06 | 12.9 | 210±6 | 110±5 | 28±1 | 15±0.5 | 80 |
| LM-ML 28B7 | 3.81 | 12.9 | 270±6 | 140±5 | 28±1 | 15±0.5 | 70 |
| LM-ML 32B6 | 5.05 | 17.1 | 270±6 | 140±5 | 32 | 17±0.5 | 70 |
| LM-ML 38B6 | 7.3 | 28.1 | 270±6 | 140±5 | 38 | 20±0.5 | 70 |
| LM-ML 38B7 | 10.78 | 19.1 | 420±10 | 220±6 | 38 | 20±0.5 | 70 |
| LM-ML 45B6 | 12.2 | 38 | 320±7 | 170±6 | 45 | 24±0.5 | 80 |
| LM-ML 45B7 | 17.06 | 27.6 | 470±10 | 250±6 | 45 | 24±0.5 | 80 |
| LM-ML 50B6 | 17.65 | 45 | 380±7 | 200±6 | 50±2 | – | – |
| LM-ML -60B6 | 28.85 | 65 | 430±10 | 220±6 | 60±2 | – | – |
| LM-ML 70B6 | 45.48 | 84 | 500±10 | 250±6 | 70±2 | – | – |
| LM-ML 90B6 | 81.22 | 120 | 500 | 300 | 90 | – | – |
| LM-ML 150T | 102.2 | 150 | 500 | 300 | 100 | – | – |
